legato_pixelbuffer.h File Reference

Pixel Buffer functions and definitions. More...

#include "gfx/legato/common/legato_color.h"

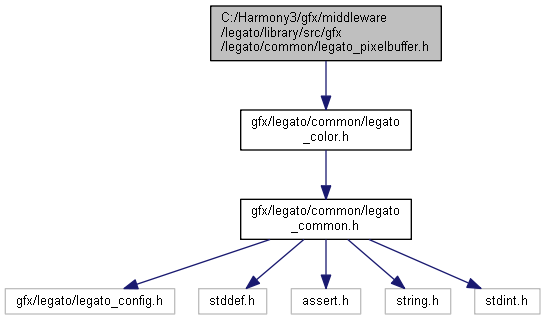

Include dependency graph for legato_pixelbuffer.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	lePixelBuffer

Typedefs
typedef struct lePixelBuffer	lePixelBuffer

Enumerations
enum	BufferFlags { BF_NONE = 0, BF_LOCKED = 1 << 0 }
	leArray data structure definition.

Functions
LIB_EXPORT leResult	lePixelBufferCreate (const int32_t width, const int32_t height, const leColorMode mode, const void *const address, lePixelBuffer *buffer)
	Create a pixelbuffer. More...
LIB_EXPORT leBuffer	lePixelBufferOffsetGet (const lePixelBuffer *const buffer, uint32_t x, uint32_t y)
	Get buffer at point. More...
LIB_EXPORT leBuffer	lePixelBufferOffsetGet_Unsafe (const lePixelBuffer *const buffer, uint32_t x, uint32_t y)
	Get buffer at point. More...
LIB_EXPORT leColor	lePixelBufferGet (const lePixelBuffer *const buffer, uint32_t x, uint32_t y)
	Get pixel at point. More...
LIB_EXPORT leColor	lePixelBufferGet_Unsafe (const lePixelBuffer *const buffer, uint32_t x, uint32_t y)
	Get pixel at point. More...
LIB_EXPORT leColor	lePixelBufferGetIndex_Unsafe (const lePixelBuffer *const buffer, const uint32_t idx)
	Get color at index. More...
LIB_EXPORT leResult	lePixelBufferClipRect (const lePixelBuffer *const buffer, const leRect *const rect, leRect *result)
	Clip rectangle. More...
LIB_EXPORT leResult	lePixelBufferSet (const lePixelBuffer *const buffer, uint32_t x, uint32_t y, leColor color)
	Pixel set. More...
LIB_EXPORT leResult	lePixelBufferSet_Unsafe (const lePixelBuffer *const buffer, uint32_t x, uint32_t y, leColor color)
	Pixel set. More...
leResult	lePixelBufferAreaFill (const lePixelBuffer *const buffer, uint32_t x, uint32_t y, uint32_t w, uint32_t h, const leColor color)
	Area fill with checking. More...
LIB_EXPORT leResult	lePixelBufferAreaFill_Unsafe (const lePixelBuffer *const buffer, uint32_t x, uint32_t y, uint32_t w, uint32_t h, leColor color)
	Area fill no checking. More...
leResult	lePixelBufferCopy (lePixelBuffer *dest, uint32_t x, uint32_t y, const lePixelBuffer *src, const leRect *srcRect)
LIB_EXPORT leBool	lePixelBuffer_IsLocked (const lePixelBuffer *const buffer)
	Determines the lock state. More...
LIB_EXPORT leResult	lePixelBuffer_SetLocked (lePixelBuffer *buffer, leBool locked)
	Sets the lock. More...

Detailed Description

Pixel Buffer functions and definitions.

Pixel buffer generation and management functions.

Function Documentation

lePixelBuffer_IsLocked()

LIB_EXPORT leBool lePixelBuffer_IsLocked

(

const lePixelBuffer *const

buffer

)

Determines the lock state.

Returns the lock state of buffer.

lePixelBuffer* buffer;
leResult res = lePixelBuffer_SetLocked(buffer, locked);

Parameters

param1

buffer is the source color value.

Returns

true if the buffer locked, otherwse false.

lePixelBuffer_SetLocked()

LIB_EXPORT leResult lePixelBuffer_SetLocked	(	lePixelBuffer *	buffer,
		leBool	locked
	)

Sets the lock.

Set the lock flag on buffer to the desired lock state specified by locked.

lePixelBuffer* buffer;
leBool locked;
leResult res = lePixelBuffer_SetLocked(buffer, locked);

Parameters

param1	buffer is the source color value.
param2	locked is the source color mode

Returns

leResult.

lePixelBufferAreaFill()

leResult lePixelBufferAreaFill	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y,
		uint32_t	w,
		uint32_t	h,
		const leColor	color
	)

Area fill with checking.

Fill buffer with color defined by the x, y w, h.

lePixelBuffer* buffer;
leResult res = lePixelBufferAreaFill_Unsafe(buffer, locked);

Parameters

param1

buffer is the source color value.

Returns

true if the buffer locked, otherwse false.

lePixelBufferAreaFill_Unsafe()

LIB_EXPORT leResult lePixelBufferAreaFill_Unsafe	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y,
		uint32_t	w,
		uint32_t	h,
		leColor	color
	)

Area fill no checking.

Fill buffer with color defined by the x, y w, h.

lePixelBuffer* buffer;
leResult res = lePixelBufferAreaFill_Unsafe(buffer, locked);

Parameters

param1

buffer is the source color value.

Returns

true if the buffer locked, otherwse false.

Here is the call graph for this function:

lePixelBufferClipRect()

LIB_EXPORT leResult lePixelBufferClipRect	(	const lePixelBuffer *const	buffer,
		const leRect *const	rect,
		leRect *	result
	)

Clip rectangle.

Clips a rectangle against a pixel buffer. The result is guaranteed to fit inside the buffer's area.

lePixelBuffer* buffer;
leResult res = lePixelBufferClipRect(buffer, x, y, color);

Parameters

param1

buffer is the source color value.

Returns

leResult.

lePixelBufferCreate()

LIB_EXPORT leResult lePixelBufferCreate	(	const int32_t	width,
		const int32_t	height,
		const leColorMode	mode,
		const void *const	address,
		lePixelBuffer *	buffer
	)

Create a pixelbuffer.

lePixelBuffer* buffer;
leResult res = lePixelBufferCreate(buffer, x, y);

Parameters

param1

buffer is the source color value.

Returns

leResult.

lePixelBufferGet()

LIB_EXPORT leColor lePixelBufferGet	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y
	)

Get pixel at point.

Gets the value of the pixel that resides at the provided point in the given buffer

lePixelBuffer* buffer;
leColor color = lePixelBufferGet(buffer, x, y);

Parameters

param1

buffer is the source color value.

Returns

leColor.

Here is the call graph for this function:

lePixelBufferGet_Unsafe()

LIB_EXPORT leColor lePixelBufferGet_Unsafe	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y
	)

Get pixel at point.

Gets the value of the pixel that resides at the provided point in the given buffer. Like lePixelBufferGet but performs no bounds checking.

lePixelBuffer* buffer;
leColor color = lePixelBufferGetIndex_Unsafe(buffer, idx);

Parameters

param1

buffer is the source color value.

Returns

leResult.

Here is the call graph for this function:

Here is the caller graph for this function:

lePixelBufferGetIndex_Unsafe()

LIB_EXPORT leColor lePixelBufferGetIndex_Unsafe	(	const lePixelBuffer *const	buffer,
		const uint32_t	idx
	)

Get color at index.

Pixel get.

Interprets the pixel buffer as a table of indices and looks up a specific index at position 'idx'. Indices may be 1bpp, 4bpp, or 8bpp in size and are indicated by the color mode of the pixel buffer.

lePixelBuffer* buffer;
leColor color = lePixelBufferGetIndex_Unsafe(buffer, idx);

Parameters

param1

buffer is the source color value.

Returns

leResult.

A faster less-safe version of lePixelBufferGetIndex.

lePixelBuffer* buffer;
leColor color = lePixelBufferGetIndex_Unsafe(buffer, idx);

Parameters

param1

buffer is the source color value.

Returns

leResult.

Get color at index.

A faster less-safe version of lePixelBufferGetIndex.

lePixelBuffer* buffer;
leColor color = lePixelBufferGetIndex_Unsafe(buffer, idx);

Parameters

param1

buffer is the source color value.

Returns

leResult.

lePixelBufferOffsetGet()

LIB_EXPORT leBuffer lePixelBufferOffsetGet	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y
	)

Get buffer at point.

Gets the offset address of the pixel that resides at the provided point in the given buffer.

lePixelBuffer* buffer;
leColor color = lePixelBufferOffsetGet(buffer, x, y);

Parameters

param1

buffer is the source color value.

Returns

leBuffer.

Here is the caller graph for this function:

lePixelBufferOffsetGet_Unsafe()

LIB_EXPORT leBuffer lePixelBufferOffsetGet_Unsafe	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y
	)

Get buffer at point.

Gets the offset address of the pixel that resides at the provided point in the given buffer. Similar to lePixelBufferOffsetGet but performs no bounds checking.

lePixelBuffer* buffer;
leColor color = lePixelBufferOffsetGet_Unsafe(buffer, x, y);

Parameters

param1

buffer is the source color value.

Returns

leBuffer.

Here is the caller graph for this function:

lePixelBufferSet()

LIB_EXPORT leResult lePixelBufferSet	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y,
		leColor	color
	)

Pixel set.

Sets a pixel in a pixel buffer at a point to a specified color. Caller is responsible for ensuring that the input color is in the same color format as the pixel buffer

lePixelBuffer* buffer;
leResult res = lePixelBufferSet(buffer, x, y, color);

Parameters

param1

buffer is the source color value.

Returns

leResult.

lePixelBufferSet_Unsafe()

LIB_EXPORT leResult lePixelBufferSet_Unsafe	(	const lePixelBuffer *const	buffer,
		uint32_t	x,
		uint32_t	y,
		leColor	color
	)

Pixel set.

Sets a pixel in a pixel buffer at a point to a specified color. Caller is responsible for ensuring that the input color is in the same color format as the pixel buffer. Like lePixelBufferSet but performs no bounds checking.

lePixelBuffer* buffer;
leResult res = lePixelBufferSet_Unsafe(buffer, x, y, color);

Parameters

param1

buffer is the source color value.

Returns

leResult.

Here is the caller graph for this function:
