legato_state.h File Reference

#include "gfx/legato/common/legato_common.h"
#include "gfx/driver/gfx_driver.h"
#include "gfx/legato/core/legato_input.h"
#include "gfx/legato/core/legato_scheme.h"
#include "gfx/legato/string/legato_stringtable.h"
#include "gfx/legato/widget/legato_editwidget.h"

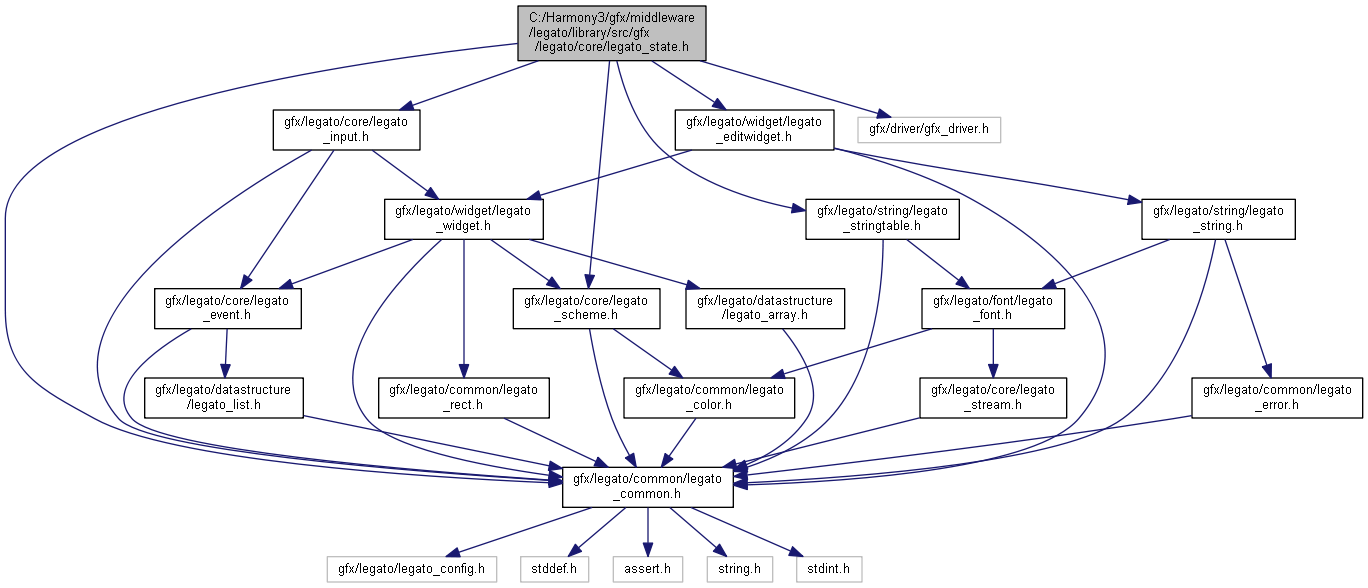

Include dependency graph for legato_state.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	leLayerState
	This struct describes the layer state for a layer. More...
struct	leState
	This struct represents the state of the library. More...

Typedefs
typedef void(*	leLanguageChangedCallback_FnPtr) (uint32_t)
	This function pointer represents a language change callback. More...
typedef struct leState	leState
	This struct represents the state of the library. More...

Functions
leResult	leInitialize (const gfxDisplayDriver *dispDriver, const gfxGraphicsProcessor *gpuDriver)
	Initialize Legato library. More...
LIB_EXPORT void	leShutdown ()
	Shutdown Legato library. More...
LIB_EXPORT leResult	leUpdate (uint32_t dt)
	Shutdown Legato library. More...
LIB_EXPORT leColorMode	leGetColorMode ()
	Get color mode. More...
LIB_EXPORT leColorMode	leGetLayerColorMode (uint32_t lyrIdx)
	Get layer color mode. More...
leResult	leSetLayerColorMode (uint32_t lyrIdx, leColorMode mode)
	Set layer color mode. More...
leBool	leGetLayerRenderHorizontal (uint32_t lyrIdx)
	Get layer render direction. More...
leResult	leSetLayerRenderHorizontal (uint32_t lyrIdx, leBool horz)
	Set layer render direction. More...
LIB_EXPORT leStringTable *	leGetStringTable ()
	Get string table. More...
LIB_EXPORT void	leSetStringTable (const leStringTable *table)
	Set string table. More...
LIB_EXPORT uint32_t	leGetStringLanguage ()
	Get language index. More...
LIB_EXPORT void	leSetStringLanguage (uint32_t id)
	Get language by index. More...
LIB_EXPORT leScheme *	leGetDefaultScheme ()
	Get default scheme. More...
LIB_EXPORT leWidget *	leGetFocusWidget ()
	Get focus widget. More...
LIB_EXPORT leResult	leSetFocusWidget (leWidget *widget)
	Get language by index. More...
LIB_EXPORT leEditWidget *	leGetEditWidget ()
	Get edit widget. More...
LIB_EXPORT leResult	leSetEditWidget (leEditWidget *widget)
	Set edit widget. More...
LIB_EXPORT leResult	leSetLanguageChangedCallback (leLanguageChangedCallback_FnPtr cb)
	Set language change callback. More...
LIB_EXPORT void	leRedrawAll ()
	Redraw All. More...
LIB_EXPORT leBool	leIsDrawing ()
	Check active screen drawing state. More...
LIB_EXPORT leResult	leAddRootWidget (leWidget *wgt, uint32_t layer)
	Add root widget to layer. More...
LIB_EXPORT leResult	leRemoveRootWidget (leWidget *wgt, uint32_t layer)
	Remove root widget to layer. More...
leBool	leWidgetIsInScene (const leWidget *wgt)
	Determines whether the widget is in the scene. More...
int32_t	leGetWidgetLayer (const leWidget *wgt)
leResult	leEdit_StartEdit ()
	Send start edit command. More...
void	leEdit_EndEdit ()
	Send end edit command. More...
void	leEdit_Clear ()
	Send clear command. More...
void	leEdit_Accept ()
	Send accept command. More...
void	leEdit_Set (leString *str)
	Send set command. More...
void	leEdit_Append (leString *str)
	Send start edit command. More...
void	leEdit_Backspace ()
	Send backspace command. More...

Detailed Description

Typedef Documentation

leLanguageChangedCallback_FnPtr

typedef void(* leLanguageChangedCallback_FnPtr) (uint32_t)

This function pointer represents a language change callback.

A language change callback is called when when the language change event occurs.

leState

typedef struct leState leState

This struct represents the state of the library.

The state of the libary is a global structure.

Function Documentation

leAddRootWidget()

LIB_EXPORT leResult leAddRootWidget	(	leWidget *	wgt,
		uint32_t	layer
	)

Add root widget to layer.

Adds the root widget wgt to the layer layer. The library maintains a static list of widgets that are considered to be scene roots. The library treats these roots as layers and the display driver may configure itself to render these roots to different hardware layers. This API adds a child widget to one of the static roots.

leResult res = leAddRootWidget(wgt, layer);

Parameters

void.

Returns

leResult.

leEdit_Accept()

void leEdit_Accept

(

)

Send accept command.

Passes a 'accept' command to the current edit widget, if one exists.

leEdit_Accept();

Returns

void.

Here is the call graph for this function:

leEdit_Append()

void leEdit_Append

(

leString *

str

)

Send start edit command.

Passes a 'append' command and string str to the current edit widget, if one exists.

leString* str;
leEdit_Append(str);

Parameters

void.

Returns

void.

Here is the call graph for this function:

leEdit_Backspace()

void leEdit_Backspace

(

)

Send backspace command.

Passes a 'backspace' command to the current edit widget, if one exists.

leEdit_Backspace();

Parameters

void.

Returns

void.

Here is the call graph for this function:

leEdit_Clear()

void leEdit_Clear

(

)

Send clear command.

Sends a 'clear' command to the current edit widget, if one exists.

leEdit_Clear();

Returns

void.

Here is the call graph for this function:

leEdit_EndEdit()

void leEdit_EndEdit

(

)

Send end edit command.

Sends an 'end edit' command to the current edit widget, if one exists.

leEdit_EndEdit();

Returns

void.

Here is the call graph for this function:

leEdit_Set()

void leEdit_Set

(

leString *

str

)

Send set command.

Passes a 'set' command and string str to the current edit widget, if one exists.

leEdit_Set(str);

Parameters

void.

Returns

leResult.

Here is the call graph for this function:

leEdit_StartEdit()

leResult leEdit_StartEdit

(

)

Send start edit command.

Passes a 'start edit' command to the current edit widget, if one exists.

leResult res = leEdit_StartEdit();

Parameters

void.

Returns

LE_SUCCESS if set, otherwise LE_FAILURE.

Here is the call graph for this function:

leGetColorMode()

LIB_EXPORT leColorMode leGetColorMode

(

)

Get color mode.

Gets the the color mode of the current context.

leColorMode mode = leGetColorMode();

Parameters

void.

Returns

the color mode of the current context.

leGetDefaultScheme()

LIB_EXPORT leScheme* leGetDefaultScheme

(

)

Get default scheme.

Returns the pointer to the current default scheme.

leScheme* scheme = leGetDefaultScheme();

Parameters

void.

Returns

void.

leGetEditWidget()

LIB_EXPORT leEditWidget* leGetEditWidget

(

)

Get edit widget.

Edit widgets are widgets that inherit the 'edit widget' API function list. These widgets are capable of receiving edit events from other widgets that are edit event broadcasters. A broadcaster could be a 'key pad' and a receiver could be a 'text edit' box.

leEditWidget* widget = leGetEditWidget();

Parameters

void.

Returns

leEditWidget pointer.

Here is the caller graph for this function:

leGetFocusWidget()

LIB_EXPORT leWidget* leGetFocusWidget

(

)

Get focus widget.

The focus widget is the widget that is currently receiving all input events. This can happen when the user initiates a touch down event on the widget and is currently dragging their finger on the display. The widget will receive all touch moved events until a touch up event is received.

leWidget* widget = leGetFocusWidget();

Parameters

void.

Returns

void.

leGetLayerColorMode()

LIB_EXPORT leColorMode leGetLayerColorMode

(

uint32_t

lyrIdx

)

Get layer color mode.

Gets the the layer color mode

leColorMode mode = leGetLayerColorMode(0);

Parameters

lyrIdx

is the index of the layer to query

Returns

the color mode of layer.

leGetLayerRenderHorizontal()

leBool leGetLayerRenderHorizontal

(

uint32_t

lyrIdx

)

Get layer render direction.

Gets the the layer render direction

bool horz = leGetLayerRenderHorizontal(0);

Parameters

lyrIdx

is the index of the layer to query

Returns

true if the layer is set to render horizontally.

leGetStringLanguage()

LIB_EXPORT uint32_t leGetStringLanguage

(

)

Get language index.

Returns the language index of the current context.

uint32_t idx = leGetStringLanguage();

Parameters

void.

Returns

void.

Here is the caller graph for this function:

leGetStringTable()

LIB_EXPORT leStringTable* leGetStringTable

(

)

Get string table.

Get a pointer to the leStringTable structure that maintains the strings, associated fonts, etc.

leStringTable* tbl = leGetStringTable();

Parameters

void.

Returns

leStringTable pointer.

leInitialize()

leResult leInitialize	(	const gfxDisplayDriver *	dispDriver,
		const gfxGraphicsProcessor *	gpuDriver
	)

Initialize Legato library.

This function performs basic initialization of the Legato library state. It accepts and intializes a display controller driver specified by dispDriver

Precondition

Must be called before any other library operations are performed.

leResult res = leInitialize(dispDriver);

Parameters

dispDriver

is the display controller driver.

Returns

LE_SUCCESS if set, otherwise LE_FAILURE.

leIsDrawing()

LIB_EXPORT leBool leIsDrawing

(

)

Check active screen drawing state.

Indicates if the library currently drawing a frame. Because frame updates can asynchronous to making changes to the UI state it is best to only make updates to the state of a widget only when the layer is not drawing.

leBool flag = leIsDrawing();

Parameters

void.

Returns

true.

leRedrawAll()

LIB_EXPORT void leRedrawAll

(

)

Redraw All.

Forces the library to redraw the currently active scene in its entirety.

leRedrawAll();

Parameters

void.

Returns

void.

Here is the caller graph for this function:

leRemoveRootWidget()

LIB_EXPORT leResult leRemoveRootWidget	(	leWidget *	wgt,
		uint32_t	layer
	)

Remove root widget to layer.

Remove the root widget wgt from the layer layer. The library maintains a static list of widgets that are considered to be scene roots. The library treats these roots as layers and the display driver may configure itself to render these roots to different hardware layers. This API adds a child widget to one of the static roots.

leResult res = leRemoveRootWidget(wgt, layer);

Parameters

void.

Returns

leResult.

leSetEditWidget()

LIB_EXPORT leResult leSetEditWidget

(

leEditWidget *

widget

)

Set edit widget.

Sets the active edit widget to widget. Edit widgets are widgets that inherit the 'edit widget' API function list. These widgets are capable of receiving edit events from other widgets that are edit event broadcasters. A broadcaster could be a 'key pad' and a receiver could be a 'text edit' box.

leEditWidget* widget = leSetEditWidget(widget);

Parameters

void.

Returns

leEditWidget pointer.

leSetFocusWidget()

LIB_EXPORT leResult leSetFocusWidget

(

leWidget *

widget

)

Get language by index.

Sets the focus widget to widget.

uint32_t id;
leResult res = leSetFocusWidget(id);

Parameters

void.

Returns

void.

leSetLanguageChangedCallback()

LIB_EXPORT leResult leSetLanguageChangedCallback

(

leLanguageChangedCallback_FnPtr

cb

)

Set language change callback.

Sets the callback function to cb to handle the language change event.

leLanguageChangedCallback_FnPtr cb;
leResult res = leSetLanguageChangedCallback(cb);

Parameters

cb	is the new callback function.

Returns

leResult.

leSetLayerColorMode()

leResult leSetLayerColorMode	(	uint32_t	lyrIdx,
		leColorMode	mode
	)

Set layer color mode.

Sets the the layer color mode at index

leResult res = leGetLayerColorMode(0, LE_RGB_565);

Parameters

lyrIdx	is the index of the layer to query
mode	is the color mode to set

Returns

result.

leSetLayerRenderHorizontal()

leResult leSetLayerRenderHorizontal	(	uint32_t	lyrIdx,
		leBool	horz
	)

Set layer render direction.

Sets the the layer render direction at index. By default a layer is rendered from top-down with dirty rectangles sliced favoring height. In horizontal mode layers are rendered from left to right with rectangles sliced favoring width. This can help reduce tearing for scenes that have horizontal movement.

leResult res = leSetLayerRenderHorizontal(0, true);

Parameters

lyrIdx	is the index of the layer to modify
true	if the layer should use horizontal mode

Returns

result.

leSetStringLanguage()

LIB_EXPORT void leSetStringLanguage

(

uint32_t

id

)

Get language by index.

Returns the language at the location specified by idx.

uint32_t id;
leSetStringLanguage(id);

Parameters

void.

Returns

void.

leSetStringTable()

LIB_EXPORT void leSetStringTable

(

const leStringTable *

table

)

Set string table.

Set string table to table.

leStringTable* table
leSetStringTable(table);

Parameters

table

is pointer to a string table.

Returns

void.

Here is the call graph for this function:

leShutdown()

LIB_EXPORT void leShutdown

(

)

Shutdown Legato library.

Shutdowns the active Legato library state.

leShutdown();

Returns

void.

leUpdate()

LIB_EXPORT leResult leUpdate

(

uint32_t

dt

)

Shutdown Legato library.

Shutdown the Legato library in dt milliseconds after the last leUpdate() was called. If the value of dt is zero then time-dependent features will not advance. the active Legato library state. This function updates the active Legato library context state. It performs event processing as well as servicing of the widget paint loop. It should be called often.

uint32_t dt=2000;
leResult res = leUpdateleShutdown(dt);

Parameters

dt	is a delta time.

Returns

LE_SUCCESS if set, otherwise LE_FAILURE.

Here is the call graph for this function:

leWidgetIsInScene()

leBool leWidgetIsInScene

(

const leWidget *

wgt

)

Determines whether the widget is in the scene.

Determines if wgt is in he current scheme. Searches the active scene for a given widget.

leBool flag = leWidgetIsInScene(wgt);

Parameters

void.

Returns

LE_SUCCESS if set, otherwise LE_FAILURE.
