The MPLAB Harmony Graphics Composer (MHGC) provides the capability for users to import and export graphics designs. The user can export the state of an existing graphics composer configuration or import another graphics composer configuration from another project.

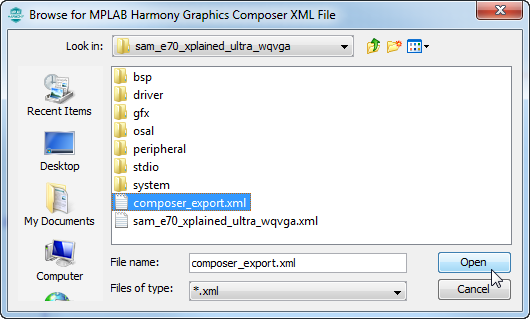

1. To import a graphics design into MHGC, select File > Import. The Browse for MPLAB Harmony Graphics Composer XML file dialog appears, which allows the selection of a previously exported Graphics Composer .xml file that contains the desired graphics design.

2. After selecting a file and clicking Open, you will be prompted whether to overwrite existing data.

To export a graphics design from MHGC, select File > Export. The Select File Location for MPLAB Harmony Graphics Composer XML file dialog appears.
