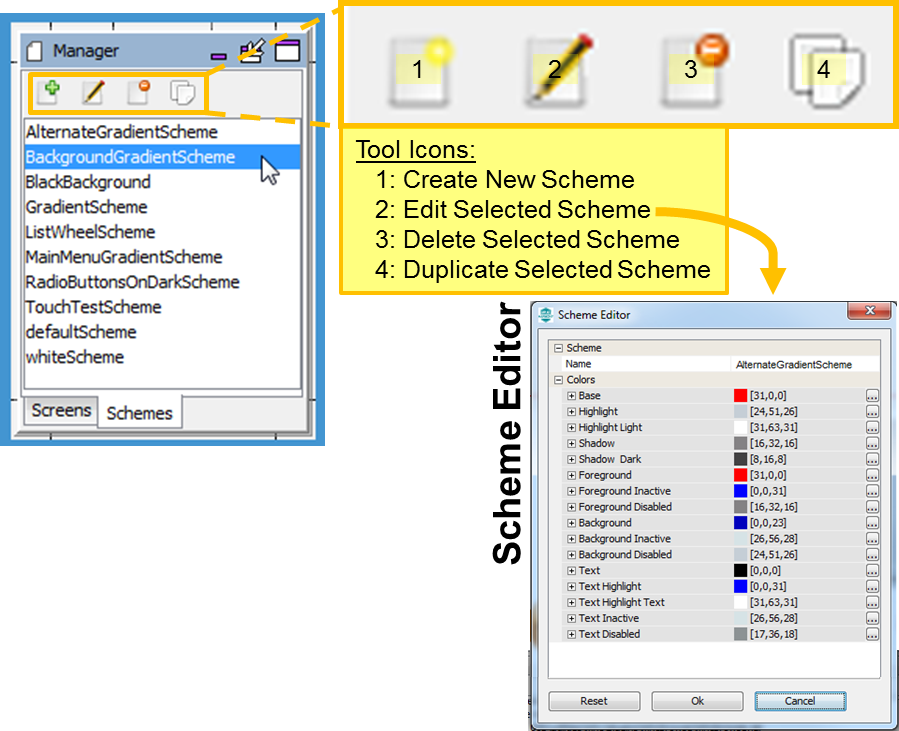

Color schemes for the application’s graphics are managed using the Schemes sub-tab.

To edit an existing scheme, select the scheme from the list and click Edit.

The Scheme Editor dialog appears, which allows change to be made to the colors associated with this display scheme.

The Scheme Editor window supports editing the individual colors of a color scheme. Clicking the ellipsis ( … ) opens the Color Picker window.

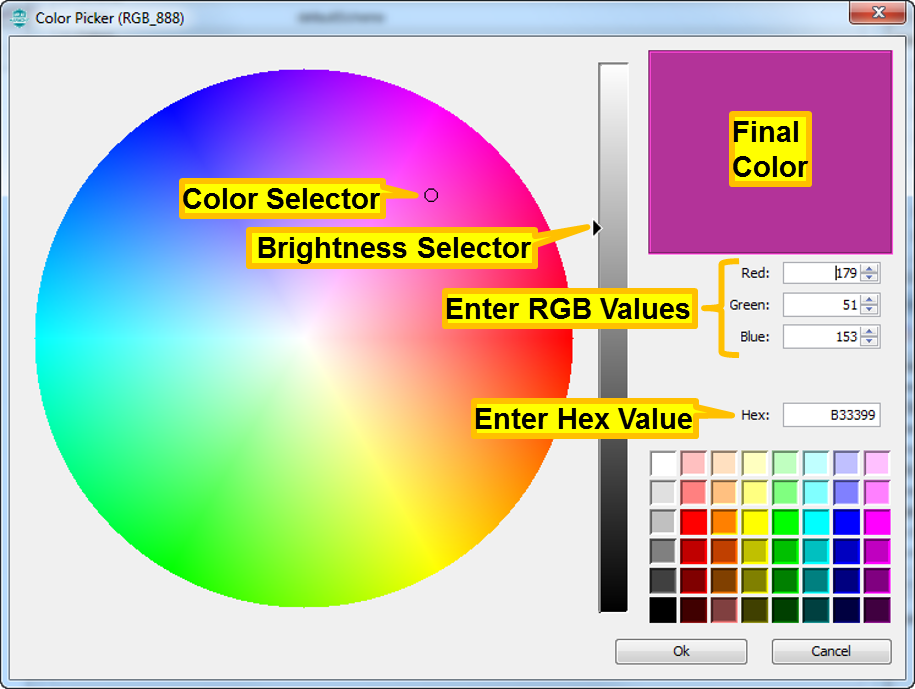

The Color Picker window allows the user to easily select a color by providing a color wheel, brightness gauge, and some common predefined color choices. The user can change the individual color values or input a number in Hexadecimal format. The end result is displayed in the top right corner.
